Student Handout
General Activity Contract
| Part Description | Notes | Download |
|---|---|---|
Original hand drawings |
Gives component dimension in Imperial units (Inches) |
PDF File |

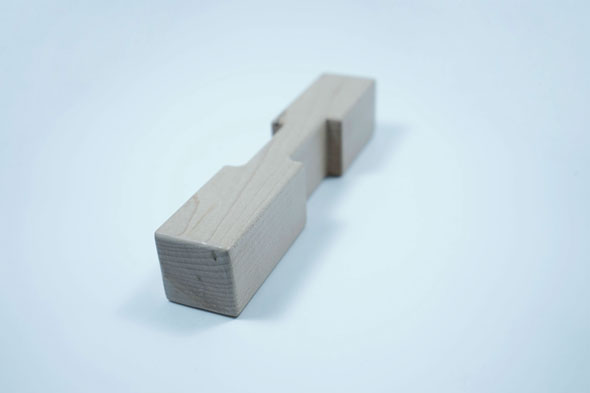

Pier  |
If the short end faces of the notches do not produce sufficient friction with the flyers, cork or other friction enhancements can be added there. Quantity: 6 |
PDF File |

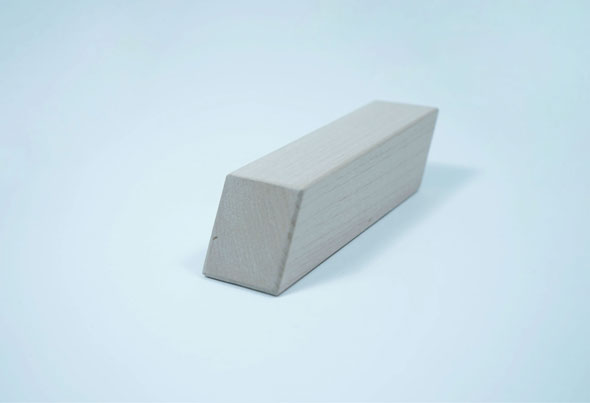

Flyer  |
Quantity: 4 |
PDF File |

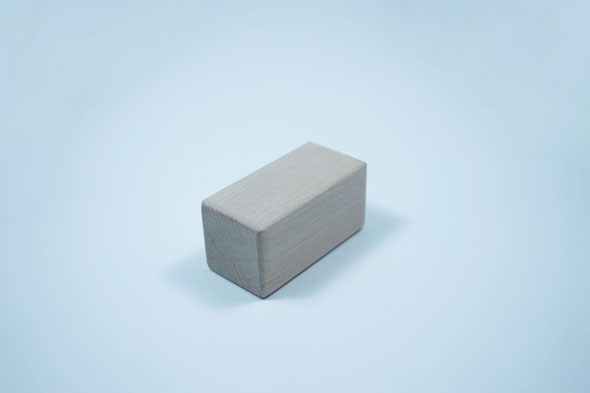

3” Block  |
Quantity: 4 |
PDF File |

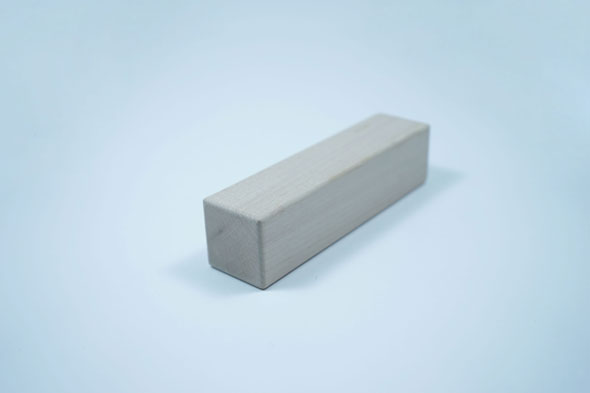

6” Block  |
Quantity: 2 |
PDF File |

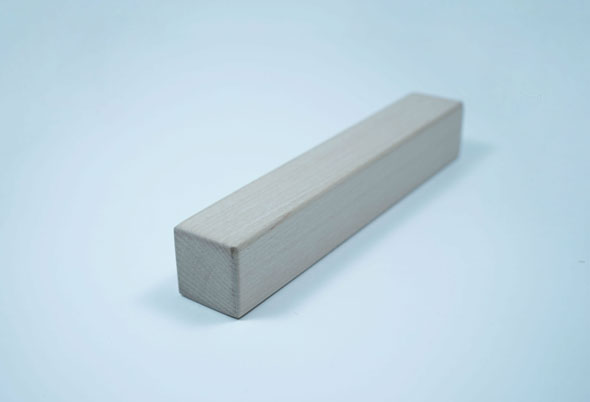

9” Block  |
Quantity: 2 |
PDF File |

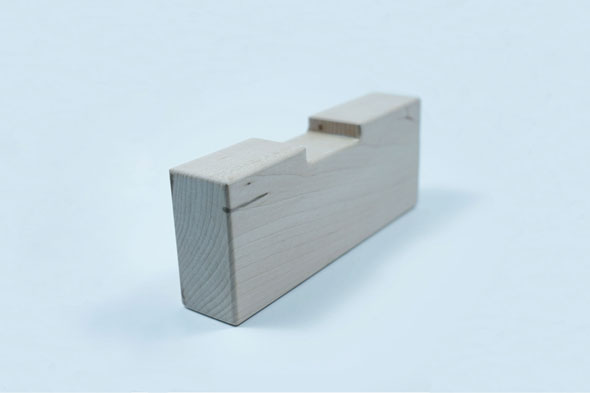

Buttress  |
Quantity: 2 |
PDF File |

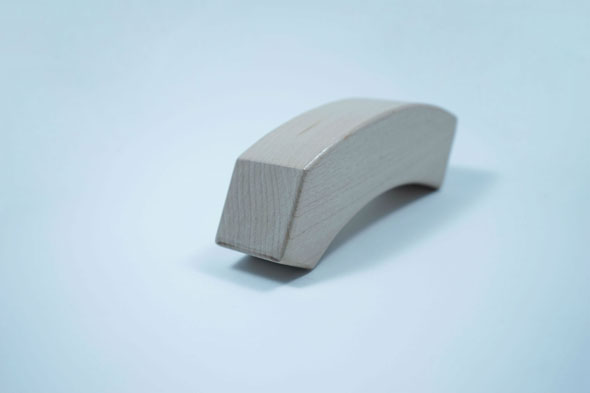

Vaulted Ceiling Segment  |
Quantity: 2 |
PDF File |

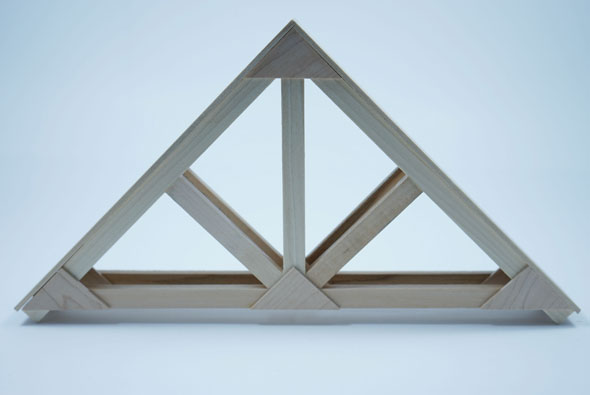

Roof Assembly  |
Quantity: 1 |
PDF File |
Rubber Mat  |
The mat enhances friction between the piers and the desktop and protects the blocks and desktop when the blocks fall. It should not be excessively thick or compliant or piers stood on it will become “wobbly.” Quantity: 1 |
