Parts
| Part Description | Notes | Download |
|---|---|---|

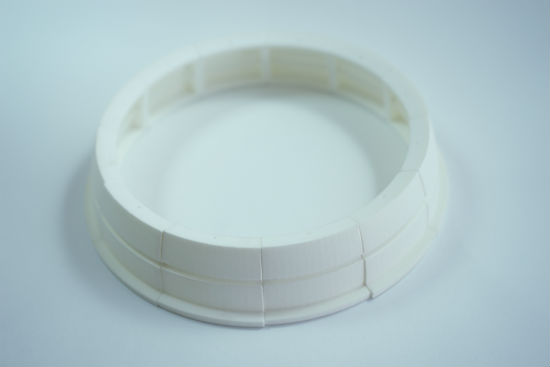

Base level  |
These base components have small horizontal and vertical holes so that they can be attached to their neighbours (using thin elastic cord) for easy of assembly or to demonstrate particular failure modes. The horizontal groove is designed to accept a circumferential rubber band that can be used to stabilize the dome base. see video. Quantity: 12 for a hemisphere; 24 for a full sphere |
|
Second level  |
Blocks for the second level of the dome. Quantity: 12 for a hemisphere; 24 for a full sphere |
|
Third level  |
Blocks for the third level of the dome. Quantity: 12 for a hemisphere; 24 for a full sphere |
|
Top level  |
A ring to close in the top (and bottom) of the dome. Quantity: 1 for a hemisphere; 2 for a full sphere |
|

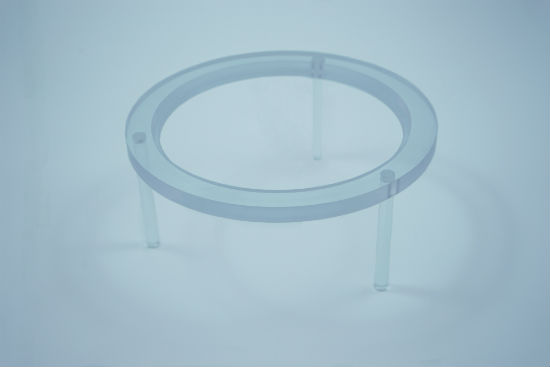

Stand  |
A stand for the dome. Quantity: 1 |
|
Assembled Dome |
The assembled dome. |
SolidWorks |
