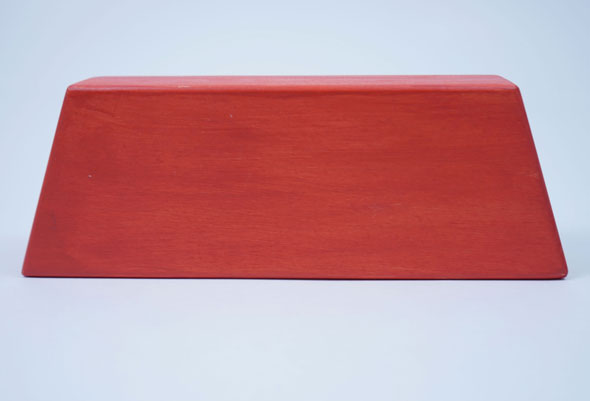

1½ x 3 x 8½” Blocks with 18° End Angles

See Equipment Design section

Wood block with no identifying dot

Quantity: 5

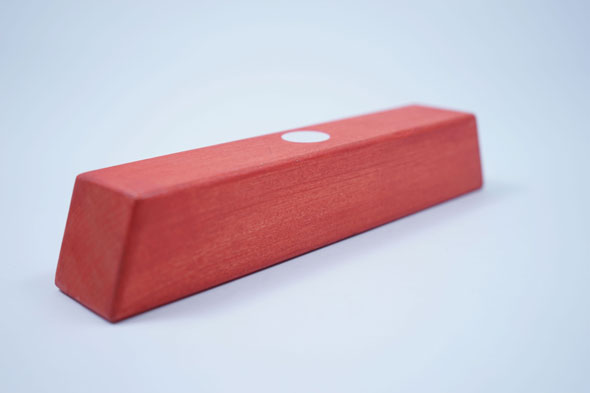

1½ x 1½ x 8” Blocks with 18° End Angles

Wood block with White dot

Quantity: 5

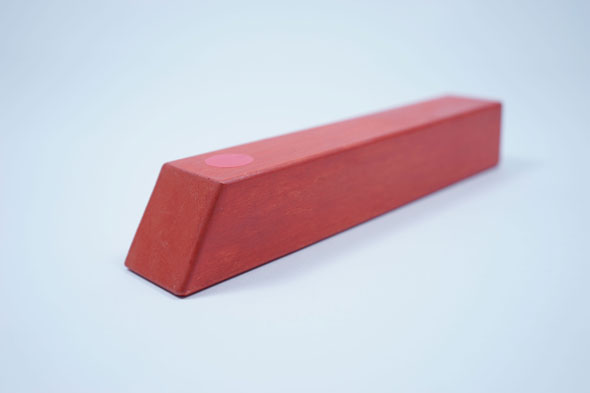

1½ x 1½ x 8¾” Blocks with 30° & 6° End Angles

Wood block with Red dot

Quantity: 2

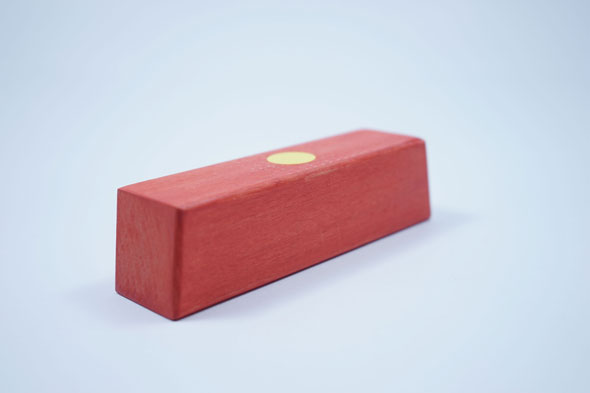

1½ x 1½ x 5½” Blocks with 8° End Angles

Wood block with Yellow dot

Quantity: 2

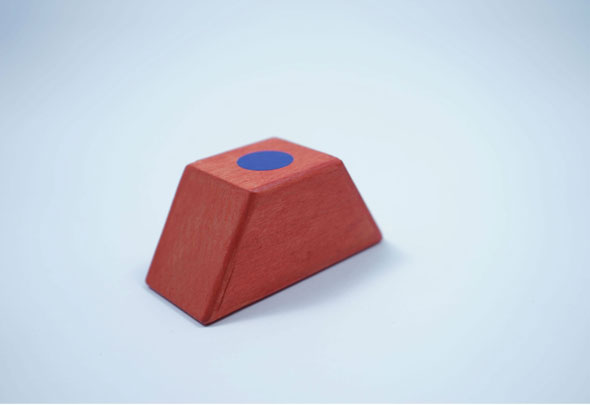

1½ x 1½ x 3¼” Blocks with 30° End Angles

Wood block with Blue dot

Quantity: 3

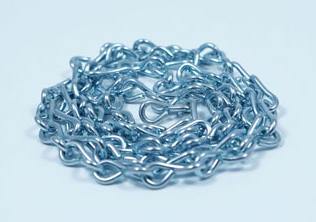

Chain

Our cable was our chain was 120 cm in length, and it had links that were 24mm in length. However, any kind of metal or plastic cable should work. Rope, string and tubing resist bending, and they tend to not generate a sufficiently precise catenary shape when suspended.

Quantity: 1

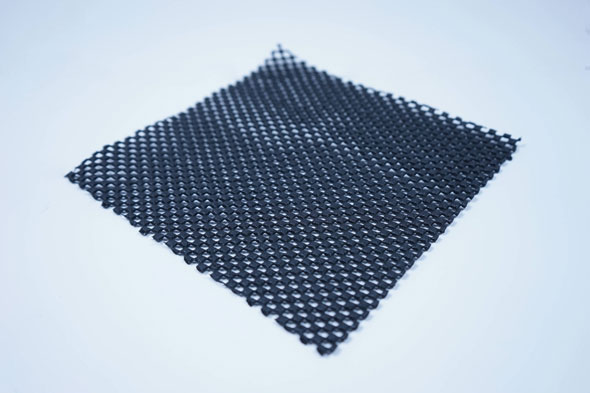

Rubber Mat

The mat is essential for providing adequate friction between the base of the lower-most block and the desktop. It also protects the blocks (and desktop) when the blocks fall. The mat should not be too thick or “spongy,” or the whole arch will tend to tip over sideways.

Quantity: 1
